Ganita Manjari · Class 9 · Part II · Chapter 12

Ganita Manjari Class 9 Maths Chapter 12 Quadrilaterals Exercise 12.2 Solutions

Four questions on parallelograms: true or false statements, a diagonal that bisects an angle, converses of true properties, and the rectangle made by angle bisectors.

Last updated 7 October 2026

  • 4Questions
  • 3Diagrams
  • Ch 12Quadrilaterals

How to answer every question

  1. Mark what is given Write the equal sides, equal angles or parallel lines on the figure.
  2. Pick a test Use ASA, SAS or SSS for triangles, or the parallelogram tests of Theorems 2 to 5.
  3. Use co-interior or alternate angles They connect parallel sides to angle facts.
  4. Hunt for a counter-example A single example is enough to show that a converse is false.

Rhombus: a parallelogram with equal adjacent sides; its diagonals bisect each other at right angles.

Rectangle: a parallelogram with a right angle; its diagonals are equal.

Converse: the statement with "if" and "then" swapped; it may or may not be true (see Chapter 9 Propositions and their Converses Solutions).

Properties and converses

Chapter 12 Exercise 12.2 Question 1 Solution : True or false? (i) A parallelogram with a right angle is a rectangle. (ii) A rhombus with perpendicular diagonals is a square. (iii) If the diagonals of a parallelogram are equal, then it is a rectangle.

Answer: True, False, True
Two parallelogram cases from Exercise 12.2 Question 1Left: a rhombus with side 5 and a 60 degree angle has perpendicular diagonals but is not a square. Right: a parallelogram with equal diagonals; triangles ABD and DCA are congruent, giving angles A and D of 90 degrees, so it is a rectangle.60°120°ABCD(ii) Rhombus: diagonals ⊥, but angles 60°, 120°not a squareABCD(iii) Equal diagonals: △ABD ≅ △DCA, so ∠A = ∠D = 90°AC = BD, AB = DC, AD common → SSS
Q1 · a rhombus with a 60° angle; a parallelogram with equal diagonals
Part (i) · TrueTrue

Solution:

Adjacent angles of a parallelogram add up to 180°. If one angle is 90°, its neighbours are 90°, and the opposite angles are equal, so all four angles are 90°. That is a rectangle.

Part (ii) · FalseFalse

The diagonals of every rhombus are perpendicular, so this condition says nothing new. A rhombus with side 5 and a 60° angle has perpendicular diagonals but its angles are 60° and 120°, so it is not a square.

What is needed is a right angle (or equal diagonals) as well.

Part (iii) · TrueTrue

Let ABCD be a parallelogram with AC = BD. In ∆ABD and ∆DCA we have AB = DC (opposite sides), AD = DA (common) and BD = CA (given). So ∆ABD ≅ ∆DCA by SSS, and ∠A = ∠D.

Since ∠A + ∠D = 180° for adjacent angles of a parallelogram, each is 90°. By part (i), ABCD is a rectangle.

(i) True. (ii) False. (iii) True.

Chapter 12 Exercise 12.2 Question 2 Solution : The diagonal AC of a parallelogram ABCD bisects ∠A. Show that it also bisects ∠C and that ABCD is a rhombus.

Answer: also bisects ∠C; rhombus
Diagonal AC bisects angle A of a parallelogramParallelogram ABCD with diagonal AC. Angle BAC equals angle CAD (given). Alternate angles make angle ACD equal to angle BAC and angle ACB equal to angle CAD, so AC bisects angle C; then all four sides are equal.ABCDGiven: ∠BAC = ∠CADAB ∥ DC → ∠ACD = ∠BACAD ∥ BC → ∠ACB = ∠CADSo ∠ACD = ∠ACB:AC bisects ∠C too.DA = DC → all 4 sides equalAll four marked angles are equal; all four sides are equal
Q2 · AC bisects ∠A

Solution:

AC bisects ∠C

Given ∠BAC = ∠CAD. Since AB ∥ DC with transversal AC, ∠BAC = ∠ACD (alternate angles). Since AD ∥ BC with transversal AC, ∠CAD = ∠ACB (alternate angles).

∠ACD = ∠BAC = ∠CAD = ∠ACB

So ∠ACD = ∠ACB, which means AC bisects ∠C.

ABCD is a rhombus

In ∆ACD, ∠CAD = ∠ACD. Sides opposite equal angles are equal (Statement 2 of Chapter 9 Propositions and their Converses Solutions), so DC = DA.

In a parallelogram, DC = AB and DA = BC. Therefore AB = BC = CD = DA. All four sides are equal, so ABCD is a rhombus.

AC bisects ∠C as well, and ∠CAD = ∠ACD gives DA = DC, so all four sides are equal: ABCD is a rhombus.

Chapter 12 Exercise 12.2 Question 3 Solution : Answer Yes or No. If No, add an extra condition so that the answer becomes Yes. (i) If the diagonals of a quadrilateral ABCD bisect its angles, must ABCD be a rhombus? (ii) If the diagonals bisect each other at right angles, must ABCD be a rhombus? (iii) If the diagonals have equal length, must ABCD be a rectangle?

Answer: Yes, Yes, No
Three quadrilaterals with special diagonals(i) A rhombus whose diagonals bisect its angles. (ii) A quadrilateral whose diagonals bisect each other at right angles at E. (iii) An isosceles trapezium with equal diagonals that do not bisect each other.ABCD(i) Diagonals bisect the anglesYes: ABCD is a rhombusEABCD(ii) Bisect each other at 90°Yes: ABCD is a rhombusABCD(iii) Equal diagonalsNo: not a rectanglediagonals do not bisect each other
Q3 · diagonals that bisect the angles, bisect each other at 90°, or are equal
Part (i) · YesYes

Solution:

AC bisects ∠A and ∠C, so in ∆ABC and ∆ADC: ∠BAC = ∠DAC, ∠BCA = ∠DCA and AC is common. So ∆ABC ≅ ∆ADC by ASA, and AB = AD and CB = CD.

BD bisects ∠B and ∠D, so in the same way ∆BAD ≅ ∆BCD, giving BA = BC and DA = DC.

AB = AD = DC = CB

Part (ii) · YesYes

The diagonals bisect each other, so ABCD is a parallelogram (Theorem 4). Let the diagonals meet at E. In ∆AEB and ∆AED: EB = ED, ∠AEB = ∠AED = 90° and AE is common, so they are congruent by SAS and AB = AD.

A parallelogram with two equal adjacent sides is a rhombus.

Part (iii) · NoNo

Take an isosceles trapezium with A(0, 0), B(4, 0), C(3, 2), D(1, 2). Its diagonals AC and BD both equal √13, but it is not a parallelogram, so it is not a rectangle.

Extra condition: if the diagonals are equal and bisect each other, then ABCD is a parallelogram with equal diagonals, which is a rectangle (Q1 (iii)).

(i) Yes. (ii) Yes. (iii) No; add the condition that the diagonals bisect each other (or that ABCD is a parallelogram).

Chapter 12 Exercise 12.2 Question 4 Solution : Let ABCD be a parallelogram with AB ≠ BC. Show that the pairwise intersection points of the four angle bisectors form the vertices of a rectangle. Why did we assume AB ≠ BC?

Answer: four right angles

Solution:

The figure

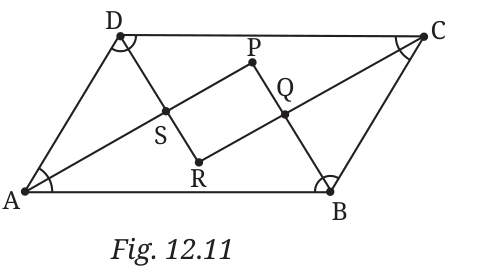

Parallelogram ABCD with the bisectors of its four angles. They meet at S, P, Q and R, forming a smaller quadrilateral inside.
Q4 · bisectors of the angles of a parallelogram (from the book)

Each angle of PQRS is 90°

Adjacent angles of a parallelogram add up to 180°, so ∠A + ∠D = 180°. The bisectors from A and D meet at S, and in ∆ASD:

∠SAD + ∠SDA = ½(∠A + ∠D) = 90°, so ∠ASD = 180° − 90° = 90°

In the same way the bisectors from D and C meet at P with ∠DPC = 90°, from C and B at Q with ∠CQB = 90°, and from B and A at R with ∠ARB = 90°.

The sides of PQRS lie along these bisectors, so each angle of PQRS (for example ∠PSR) equals one of these right angles. A quadrilateral with four right angles is a rectangle.

Why AB ≠ BC

If AB = BC, the parallelogram is a rhombus. Then the bisector of ∠A is the diagonal AC, which is also the bisector of ∠C, and the bisectors of ∠B and ∠D are the diagonal BD. So all the bisectors pass through the centre, and P, Q, R and S collapse to a single point. There is no rectangle.

Every angle of PQRS is 90°, so it is a rectangle. We need AB ≠ BC because in a rhombus the four bisectors meet at one point.

Answers at a glance

Each statement is proved, or refuted with an example.

QuestionWhat is askedKey ideaAnswer
Q1 True or falseRight angle; equal diagonalsTrue, False, True
Q2 Diagonal bisects ∠AAlternate anglesAC bisects ∠C; rhombus
Q3 ConversesASA, SAS; counter-exampleYes, Yes, No
Q4 Angle bisectors∠A + ∠D = 180°Four right angles; rectangle

Source of the questions: NCERT, Ganita Manjari, Grade 9, Part II, Chapter 12, Exercise Set 12.2. The solutions, explanations and diagrams on this page are our own working.
